Drum Spotter Drum Palletizer
Drum Spotter Drum Palletizer, drum mover, drum palletizers, drum transporter


Drum palletizers move drums to and from pallets easily and quickly


The Morse Model 81 drum mover is designed to enable the user to simply wheel it to any corner of the pallet. With the handle raised the two forged alloy lifting hooks will slide under the rim of the drum and easily lift drums from pallets and move them around your facility.

The Model 81 has an elegantly simple new design to get the job done efficiently! Individual workers can manage drum deliveries as needed in areas convenient to their work stations.

Order online or call (877) 742-5190 for a custom quote.
This innovative drum handler and drum palletizer is designed to easily move a rimmed 55-gallon drum onto and off pallets up to 6" high. Morse drum movers are ergonomic and securely move drums on and off of pallets.

Item# Item Name   Qty Add
Drum Spotter Model 81 DRUM SPOTTER / PALLETIZER, PALLETIZE 55-GALLON RIMMED DRUM, 800 Lb. CAPACITY
$798.00
Check the items you wish to purchase, then click


More Information:

Request a Quote

Ask a Question

Drum Spotter - Drum Palletizer

 Drum Spotter - Drum Palletizer

This innovative drum palletizer is designed to securely move a rimmed 55-gallon drum onto and off pallets up to 6" high. Transport drums around your facility simply and efficiently with Morse drum handling equipment.


Designed for use with rimmed drums

  • 22" to 23.5" (56 - 60 cm) diameter
  • 34" to 36" (86-92 cm) tall
  • Closed 55-gallon (208 liter) steel tight-head or removable top type
  • Many popular 55-gallon plastic drums
  • Many fiber drums with clamp-on lids
  • Maximum pallet height: 6" (15 cm)


Model 81 Dimensions

  • Height with handle raised 74.25" (189 cm
  • Height with handle down 47.25" (120 cm)
  • Length with handle horizontal 43.25" (110 cm)
  • Base width
    • 48.5" (123 cm) O. D.
    • 41.5" (105 cm) I. D.
  • Base length: 32.25" (82 cm)

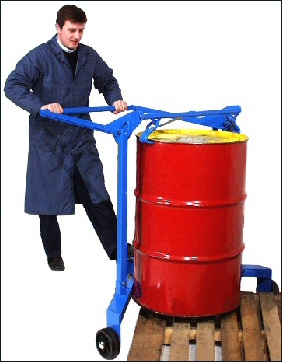

 Raise handle so steel hooks

  Lower handle to lift drum from floor

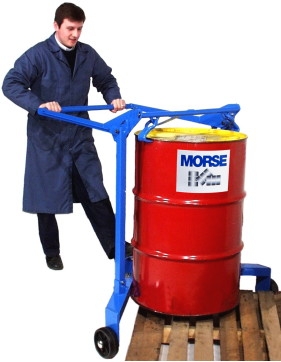

Raise handle so steel hooks engage drum below rim

Lower handle to lift drum from floor

Ships in two parts to reduce freight cost

  • Part A - Handle, stanchions and hooks
    Dimensions: L41" W36" H9"
    Weight: 54 Lb.
  • Part B - Base assembly
    Dimensions: L51" W34" H10"
    Weight: 157 Lb.
