Morse 4 Wheel Drum Trucks
Morse 4 Wheel Drum Trucks - Drum Handling, Portable Hand Truck, Drum Hand Truck, 55 gallon drum dolly, Morse Drum Trucks, Morse Drum Dolly


Morse 4 Wheel Drum Trucks / Barrel Handling Trucks


The innovative design of this Morse 4 wheel drum truck provides extra safety, ease of use, and versatility.

With Morse ergonomic drum hand trucks you can load and unload a heavy drum with ease and move a drum quickly and easily in narrow aisles. The four wheels fully support the drum's weight, so maneuvering is easy. It turns on a dime too.

You can move a drum onto and off pallets, and position a drum for dispensing with a portable 55 gallon hand truck. When you're done, the drum truck stands upright by itself for space saving storage.

We also sell 2 wheel drum trucks, 30 gallon drum dollies, Wesco drum trucks, and drum palletizers.

Order online or call (833) 574-2570 for a custom quote.
With this ergonomic Morse 4 wheel drum truck, you can load and unload a heavy drum with ease and move a drum quickly and easily in narrow aisles.

Morse Ergonomic 4-Wheel Drum Trucks
Morse 4 Wheel Drum Truck Assembly
Item# Item Name   Qty Add
160-WP DRUM TRUCK, 4 PNEUMATIC WHEELS, SELF STANDING, 1000 Lb. CAPACITY
$822.00
160 DRUM TRUCK, 4-WHEEL, SELF STANDING, 1000 Lb. CAPACITY
$579.00
160M DRUM TRUCK, 4-WHEEL, SELF STANDING, SPARK RESISTANT PARTS, 1000 Lb. CAPACITY
$0.00
160-SS DRUM TRUCK, 4-WHEEL, TYPE 304 STAINLESS STEEL, 1000 Lb. CAPACITY
$1,447.00
Check the items you wish to purchase, then click


More Information:

Models with zero (i.e., $0.00) pricing need to be priced at time of inquiry. Please call (877) 742-5190 to request a quote.

Request a Quote

Ask a Question

Morse 4 Wheel Drum TrucksMorse 4 Wheel Drum Trucks

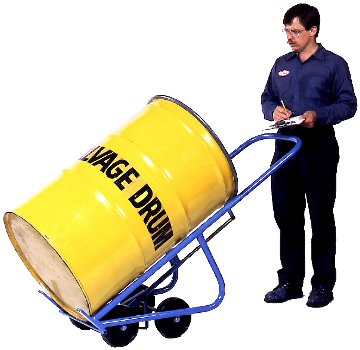

Model #160 Multi-Purpose Morse 4 Wheel Drum Truck


Industrial drum trucks for moving and dispensing from the various drums

  • A drum 14" to 28" (36 to 71 cm) in diameter
  • A drum 31" to 41" (79 to 104 cm) tall
  • 55-gallon (208 liter) steel drum
  • 30-gallon (114 liter) steel drum
  • 85-gallon (322 liter) salvage or "overpack" drum
  • Rimmed plastic drum
  • Fiber drum with enough rim recess on top for hook engagement

Use this Morse drum truck to:

  • Easily move and turn drum
  • Pour barrel or drum
  • Pass through narrow aisles while hands are protected inside the U-shaped handle
  • Move drum on and off the pallets

Morse Drum truck features:

  • Stands alone on 4-wheels holding full weight of drum. Does not require you to support or balance the drum
  • Extendable support prop stabilizes the drum truck in dispensing position, and allows self-stand for upright storage
  • Chime hook engages upper drum rim to assist in pulling upright drum onto drum truck
  • Four large 8" (20.3 cm) MORTUF polyolefin roller bearing wheels carry the load
  • Wide, rounded forged steel toes to ease loading and protect drum
  • Capacity: 1,000 Lb. (454 kg)

Morse Drum Truck Dimensions

  • Frame is 63" (160 cm) long
  • Wheel base is 20" (51 cm) wide
  • Stands upright in 20" x 20" (51 x 51 cm) space


Model # 160M 4-Wheel Drum Truck with Spark Resistant Parts



4-Wheel Drum truck like model 160, but with spark resistant parts made of monel.
  • Domestic ship weight: 79 Lb. (36 kg)
  • Domestic ship dimensions: L25" W21" H35" (64 x 54 x 89 cm)

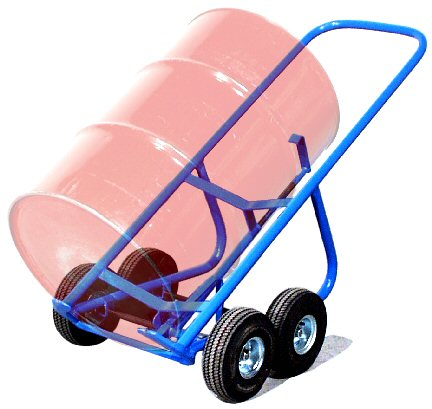

Model 160-WP Drum Truck with pneumatic wheelsModel # 160-WP 4-Wheel Drum Truck for Rough Terrain

Morse Drum Trucks for moving a drum across rough terrain have Pneumatic Wheels (inflated tires) mounted outside the frame for added stability

Do you need to move a drum across rough terrain? The 4 wheels are mounted outside this drum truck's frame to provide a wider, more stable base. The inflated tires help move the truck carefully over rough terrain.

Drum Truck Dimensions:

  • 63.375" (161 cm) long frame
  • 27.25" (69.2 cm) wide wheel base is
  • Each tire has 10" (25.4 cm) diameter, and is 3.75" (9.5 cm) wide
  • 10.75" (27.3 cm) between front and back axles

Ships Boxed

  • Domestic ship weight: 88 Lb. (40 kg)
  • Domestic ship dimensions: L29" W25" H35" (74 x 64 x 89 cm)
