Omni-Lift Drum Rackers
Omni-Lift Drum Rackers

Drum Stackers on wheels to place a drum horizontally in rack

Morse Omni-Lift Drum Rackers enable you to rack drums up to 72" high. They are easily handled by one person. Lift a drum from either horizontal or vertical position on the floor.

Handle your drum with a drum faucet in place - see diagram. This allows your drum rack to serve as a dispensing station.

Order online or call (877) 742-5190 for a custom quote.
Morse Omni-Lift Drum Rackers enable you to rack drums up to 72" high. Lift a drum from either horizontal or vertical position on the floor.

Item# Item Name   Qty Add
AP405 ADAPTOR TO HANDLE 55-GALLON PLASTIC DRUM WITH OMNI-LIFT DRUM RACKER
$151.30
405 OMNI-LIFT KARRIER/DRUM RACKER, 72", MANUAL LIFT & TILT, 800 Lb. CAPACITY
$2,042.55
405M OMNI-LIFT KARRIER/DRUM RACKER, 72", MANUAL LIFT & TILT, SPARK RESISTANT PARTS, 800 Lb. CAPACITY
$0.00
Check the items you wish to purchase, then click


More Information:

Models with zero (i.e., $0.00) pricing need to be priced at time of inquiry. Please call (877) 742-5190 to request a quote.

Request a Quote

Ask a Question

Morse Omni-Lift Drum Rackers

Omni-Lift Drum Rackers

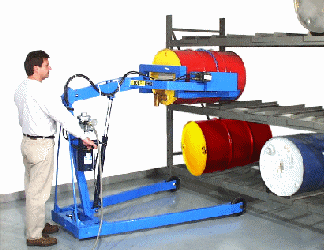

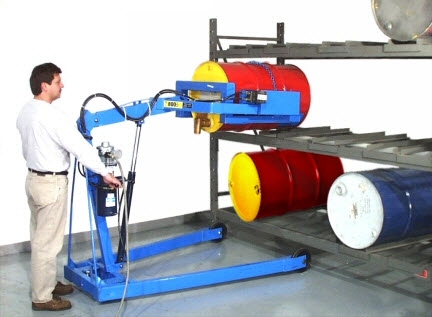

Morse Omni-Lift Drum Rackers allow you to rack drums up to 72" high. These drum rackers are easily handled by one person. Lift a drum from either horizontal or vertical position on the floor. Please see the typical rack configuration presented by the Omni-Lift Drum Rackers.

Ergonomic power lift and power tilt options are available with your choice of Air, AC or DC motors. Move drum racker easily on two 8" wheels and two 4" casters.

Capacity

  • 800 Lb. for full drum
  • 500 Lb. for half-full drum*





Steel Drum

Spark resistant steel drum

Lift your drum from horizontal or from upright with Omni-Lift Drum Rackers
Handle 55-gallon steel drum. To handle a 55-gallon plastic drum, add option AP405.

Models with spark resistant parts are available, also.


Load a drum on a drum rotator

Load a Drum onto a Morse Drum Rotato

  • Place drum onto a drum rotator with an Omni-Lift Drum Racker
  • Place a drum onto a Stationary Drum Rotator
  • Or onto a Portable Drum Roller

Omni-Lift Drum Rackers can also serve as a dumper with controlled pouring. Model 405-114 Omni-Lift Drum Racker shown here, has Air Power Lift and Tilt.

drum rackers

Rack 55-gallon Plastic Drum with option # AP405

  • Adapt Omni-Lift Drum Racker for handling your closed head 55-gallon plastic drum with top rim
  • You can also rack 55-gallon steel drum with option AP405 installed
  • Not for use with spark resistant models with spark resistant parts
