Drum Cone Models
Drum Cone Models, 55 gallon drum cones


Drum Cones to control dispensing of dry material from your drums


Replace your drum lid with a properly sized Drum Cone to control your dispensing operation by turning your drum into a precise pouring instrument. Attaching a Morse drum cone to your drum gives you the ability to extend the reach of the pour by up to 15.5 (39.4 cm). This can be critical when you need to reach beyond obstructions at the receiving container.

Morse Drum Cones are available in 16 gauge carbon steel or type 304 stainless steel. Clamp Collars are also available in carbon steel or type 304 stainless steel.

Order online or call (877) 742-5190 for a custom quote.
Drum Cones to control dispensing of dry material from your drum. Slide Gate or Iris valve drum cone openings let you control the flow of materials.

Item# Item Name   Qty Add
7-23 CLAMP COLLAR, SIZE #23
$160.20
7SS-23 CLAMP COLLAR, T304 STAINLESS STEEL, SIZE #23
$356.00
5-60-23 DRUM CONE, 60 DEGREE, SIZE #23
$329.30
5-IV-60-23 DRUM CONE, IRIS VALVE, 60 DEGREE, SIZE #23
$1,155.22
5-SG-60-23 DRUM CONE, SLIDE GATE, 60 DEGREE, SIZE #23
$418.30
5SS-60-23 DRUM CONE, T304 STAINLESS STEEL, 60 DEGREE, SIZE #23
$801.00
5SS-IV-60-23 DRUM CONE, T304 STAINLESS STEEL, ALUMINUM IRIS VALVE, 60 DEGREE, SIZE #23
$1,619.80
5SS-SG-60-23 DRUM CONE, T304 STAINLESS STEEL, SLIDE GATE, 60 DEGREE, SIZE #23
$1,019.05
5SS-VF-60-23 DRUM CONE, T304 STAINLESS STEEL, VALVE FLANGE, 60 DEGREE, SIZE #23
$836.60
5-VF-60-23 DRUM CONE, VALVE FLANGE, 60 DEGREE, SIZE #23
$351.55
Check the items you wish to purchase, then click


More Information:

Request a Quote

Ask a Question

Drum ConeDrum Cones

To control dispensing of dry material from your drum replace your drum lid with a properly sized Drum Cone to control your dispensing operation by turning your drum into a precise pouring instrument. Morse Drum Cones are available in 16 gauge carbon steel or type 304 stainless steel. Clamp Collars are also available in carbon steel or type 304 stainless steel.

  • Use your drum for controlled pouring
  • Greatly minimize dust when discharging dry material
  • Quickly start and stop dispensing instantly with slide gate or iris valve
  • Extend the reach of pour
  • Models for open-head steel drums and fiber drums of various diameters
  • Order 45 or 60 degree angle to 6" (15.24 cm) discharge opening
  • Cones available for drum diameters from 15-7/8" to 23-3/8" (40.3 to 59.4 cm)

Slide Gate (SG)

Drum Cones equipped with a Slide Gate are recommended for powdered material, but NOT for coarse granulated products.

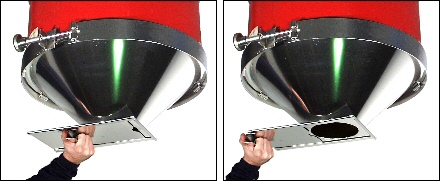

Stainless steel drum cone with slide gate to control pouring

Model 5SS-SG-45-23 Stainless Steel Drum Cone made of 16 gauge type 304 stainless steel with Slide Gate and 45 degree angle in size # 23, shown with Model 7SS-23 Stainless Steel Clamp Collar in size # 23

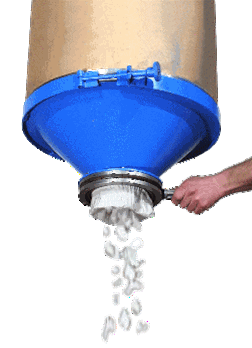

Iris Valve (IV)

Drum Cones with an Iris Valve are recommended for dispensing fine or coarse materials.

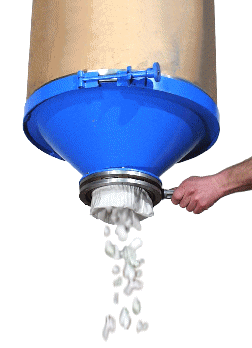

drum cone with Iris Valve closed drum cone with Iris Valve open

Iris Valve with aluminum body and 4 oz nylon sleeve for controlling the flow of fine and coarse materials. The operator revolves the handle around the valve to open and close the flexible sleeve up to a 6" (15.24 cm) diameter opening. A wide range of fine to coarse materials can be handled without clogging the iris valve.

Iris Valves are for use with products having a maximum density of 60 Lb./ft3.

Valve Flange (VF)

Drum Cones are available with a Valve Flange to attach the valve of your choice. Please refer to the flange bolt hole pattern to ensure your valve will fit a Morse Drum Cone.

Drum Cone with flange to attach the valve of your choice.

Model 5-VF-60-23 is shown here.

6" Opening with No Valve or Flange

Drum Cones are also available with a 6" (15.24 cm) diameter opening with no valve or flange.

Morse Clamp Collars

Use a Clamp Collar to secure the cone in position on the top of your drum.

Clamp Collar
Model 7-23
Clamp Collar in size # 23
