MORStop Tilt-Brakes
MORStop Tilt-Brake Models

MORStop Tilt-Brake to hold drum position

The unique MORStop Tilt-Brake automatically stops and holds the drum tilt angle! It is a simple, compact anti-backdrive device which functions smoothly and quietly in both directions. Without the MORStop Tilt-Brake, a heavy unbalanced drum may tilt out of control. Operators may need to manually lock the pull-chain or hand crank to prevent unwanted drum rotation. The MORStop Tilt-Brake eliminates this need.

The MORStop Tilt-Brake option is available on many models in the Morse Drum Karrier Series and also fits any manual tilt product using a Morse style gear block.

Order online or call (833) 574-2570 for a custom quote.
MORStop Tilt-Brake automatically holds drum position... so you don't have to

Item# Item Name   Qty Add
3900-P KIT, MORSTOP TILT-BRAKE FOR FIELD INSTALLATION
$215.00
3900iSS-P OPTION, MORSTOP TILT-BRAKE WITH 'STEEL-IT' EPOXY PAINT, FACTORY INSTALLED
$516.00
3900i-P OPTION, MOSTOP TILT-BRAKE FACTORY INSTALLED
$215.00
Check the items you wish to purchase, then click


More Information:

Request a Quote

Ask a Question

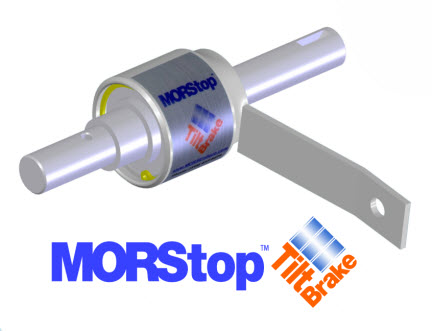

MORStop Tilt-Brake

MORStop Tilt-BrakeThe unique MORStop Tilt-Brake automatically stops and holds the drum tilt angle! It is a simple, compact anti-backdrive device which functions smoothly and quietly in both directions.

Without the MORStop Tilt-Brake, a heavy unbalanced drum may tilt out of control. Operators may need to manually lock the pull-chain or hand crank to prevent unwanted drum rotation. The MORStop Tilt-Brake gets rid of this need.

The MORStop Tilt-Brake option is available on many models in the Morse Drum Karrier Series and also fits any manual tilt product using a Morse style gear block.

Order Option # 3900i-P to have the MORStop Tilt-Brake installed on your new drum handler.

You may also install the MORStop Tilt-Brake on
your existing unit. Order kit for field installation part # 3900-P.

Hand Crank is available separately as part # 5U-P.

Chain Wheel & Hand Wheel options also available.

Advantages and Benefits:

  • Gives the operator unprecedented control and ease of use by holding the drum tilt position constant even when removing tension from the pull-chain or crank handle

  • Eliminates backdrive from heavily loaded, unbalanced drum and prevents drum from tilting due to its own weight-shift

  • Braking is immediate and self-actuating, without additional steps by the user
  • Braking action works in either forward or reverse tilt-direction

MORStop Tilt-Brake fits: Any new or used product from the Morse Karrier Series (185, 285 or 400 Series) with Chain-Wheel, Hand Crank or Hand Wheel for manual drum tilt control. It also fits many manual-tilt products using a Morse style gear block.


Part #
 		Description Ship Weight
 		Ship Dimensions
3900i-P MORStopTM Tilt-Brake with silver powder coat factory installed on new drum handler 3 Lb.
(1.4 kg) 		N/A
3900-P MORStopTM Tilt-Brake Kit with silver powder coat for field installation
3 Lb.
(1.4 kg) 		L8" W7" H3"
(20 x 18 x 8 cm)
3900iSS-P MORStopTM Tilt-Brake with stainless steel casing factory installed on new drum handler
3 Lb.
(1.4 kg) 		N/A
3900SS-P MORStopTM Tilt-Brake Kit with stainless steel casing for field installation 3 Lb.
(1.4 kg) 		L8" W7" H3"
(20 x 18 x 8 cm)

Drum Tilt Control Option #
 		Description
X01 Factory installed Self Stopping Hand Crank (Hand Crank with MORStopTM Tilt-Brake with silver powder coat )
