Vertical-Lift Drum Pourers
Vertical-Lift Drum Pourers, drum carrier, drum carriers, mobile drum carrier, mobile drum carriers, drum karrier, drum karriers, Morse karrier, drum pourer, mobile drum pourer, pouring drums, Mobile Drum Carriers, morse drum dumper, morse barrel dumper


Drum lifters on wheels that lifts & pours drums up to 106" high

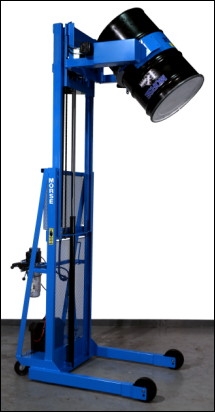

Vertical-Lift Drum Pourers make it simple to raise and pour a heavy drum. While you dispense, you control the drum pouring angle and height. You can also weigh your drum while its on the drum lifter & control the angle of the pour. A drum faucet or drum cone will control the flow from the barrel.

The compact base and quality components of this Vertical-Lift drum handler make it easy to maneuver. For use with fiber, plastic or metal drums. It also accepts drum adapters to lift and pour smaller drums.

Order online or call (877) 742-5190 for a custom quote.
Vertical-Lift Drum Pourers make it simple to raise and pour a heavy drum. While you dispense, you control the drum pouring angle and height.

Item# Item Name   Qty Add
520-114 VERTICAL-LIFT DRUM POUR, 106", AIR POWER LIFT & TILT
$6,764.00
520-124 VERTICAL-LIFT DRUM POUR, 106", AIR POWER LIFT, MANUAL TILT
$5,786.78
520-115 VERTICAL-LIFT DRUM POUR, 106", BATTERY POWERED, POWER LIFT & TILT
$6,741.75
520-125 VERTICAL-LIFT DRUM POUR, 106", BATTERY POWERED, POWER LIFT, MANUAL TILT
$5,651.50
520-117 VERTICAL-LIFT DRUM POUR, 106", ELECTRIC POWERED, PHASE 1, 50HZ, POWER LIFT
$0.00
520-127 VERTICAL-LIFT DRUM POUR, 106", ELECTRIC POWERED, PHASE 1, 50HZ, POWER LIFT
$0.00
520-120 VERTICAL-LIFT DRUM POUR, 106", ELECTRIC POWERED, PHASE 1, POWER LIFT, MANUAL
$5,740.50
520-110 VERTICAL-LIFT DRUM POUR, 106", ELECTRIC POWERED, POWER LIFT & TILT
$6,719.50
520 VERTICAL-LIFT DRUM POUR, 106", MANUAL LIFT & TILT
$4,939.50
520M VERTICAL-LIFT DRUM POUR, 106", SPARK RESISTANT PARTS, MANUAL LIFT & TILT
$0.00
510-114 VERTICAL-LIFT DRUM POUR, 60", AIR POWER LIFT & TILT
$5,874.00
510-124 VERTICAL-LIFT DRUM POUR, 60", AIR POWER LIFT, MANUAL TILT
$4,877.20
510-125 VERTICAL-LIFT DRUM POUR, 60", BATTERY POWERED, POWER LIFT & MANUAL TILT
$4,850.50
510-115 VERTICAL-LIFT DRUM POUR, 60", BATTERY POWERED, POWER LIFT & TILT
$5,851.75
510-117 VERTICAL-LIFT DRUM POUR, 60", ELECTRIC POWERED, PHASE 1, 50HZ, POWER LIFT
$0.00
510-127 VERTICAL-LIFT DRUM POUR, 60", ELECTRIC POWERED, PHASE 1, 50HZ, POWER LIFT
$0.00
510-120 VERTICAL-LIFT DRUM POUR, 60", ELECTRIC POWERED, PHASE 1, POWER LIFT, MANUAL TILT
$4,819.35
510-110 VERTICAL-LIFT DRUM POUR, 60", ELECTRIC POWERED, POWER LIFT & TILT
$5,829.50
510-113 VERTICAL-LIFT DRUM POUR, 60", EXPLOSION PROOF
$0.00
510 VERTICAL-LIFT DRUM POUR, 60", MANUAL LIFT & TILT
$4,005.00
510M VERTICAL-LIFT DRUM POUR, 60", SPARK RESISTANT PARTS, MANUAL LIFT & TILT
$0.00
Check the items you wish to purchase, then click


More Information:

Models with zero (i.e., $0.00) pricing need to be priced at time of inquiry. Please call (877) 742-5190 to request a quote.

Request a Quote

Ask a Question

Vertical-Lift Drum Pourers & Drum Dumpers

Vertical-Lift Drum Pourers

It's a Cinch to handle almost any drum, with the
MORcinch Drum Holder

Vertical-Lift Drum Pourers make it simple to raise and pour a heavy drum. While you dispense, you control the drum pouring angle and height. The compact base and quality components of this Vertical-Lift drum handler make it effortless to maneuver. Pour your drum with a drum faucet or drum cone in place.

Capacity: 800 Lb. (363 kg).

  • Automatically cinches for 22" to 23.5" (56 to 59.7 cm) diameter steel or fiber drum
  • Accepts MORcinch Options to handle your plastic drum
  • Accepts Diameter Adaptors for your smaller drums
  • Flexible chain cover helps protect the drum sidewall
  • Includes safety covered gears for your protection
  • Has durable stress-relief weld joints for years of service
  • Vertical-Lift Drum Pourers provide controlled drum pouring

    Single-Stage models pour drum up to 60" high 2-Stage models pour drum up to 106" high.

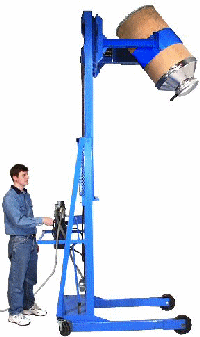

    Also shown above is the fiber drum with a Morse Drum Cone equipped with an Iris Valve to control dispensing from the drum.

    Power Lift and Power Drum Tilt for ergonomic drum pouring

    • Option 110 - AC motor powered hydraulic lift & tilt
      • Add suffix -110 to model #
    • Option 114 - Air motor powered hydraulic lift and tilt
      • Add suffix -114 to model #
    • Option 115 - 12V DC powered hydraulic lift and tilt
      • Includes 12V battery & charger
      • Add suffix -115 to model #

    Power Lift with Manual Drum Tilt

    • Option 120 - AC motor powered hydraulic lift
      • Add suffix -120 to model #
    • Option 124 - Air motor powered hydraulic lift
      • Add suffix -124 to model #
    • Option 125 - 12V DC powered hydraulic lift
      • Includes 12V battery & charger
      • Add suffix -125 to model #

    Manual Lift and Manual Drum Tilt

    • Hand pump for lift
    • Hand crank or pull chain for drum tilt

    inline style="font-size: 14px;">Options


    Rim Clamp to Handle

    inline style="font-size: 14px;">Top Rim Clamp to Handle Your Rimmed 55-Gallon Plastic Drum


    The Top Rim Clamp grips the upper rim of your 55-gallon (208 liter) rimmed plastic drum to prevent it from slipping through the drum holder. The Top Rim Clamp can also be used with a 55-gallon rimmed fiber or steel drum. It bolts onto the MORcinch Drum Holder. Clamp it to the top rim of your drum, then secure the cinch chain around the drum as usual.

    Part # 4560-P Rim Clamp Assembly.
    Part # 4560M-P Spark Resistant Rim Clamp Assembly.
    Part # 4560SS-P Stainless Steel Rim Clamp Assembly.

     Rimless Plastic Drum

    Bracket Assembly Required to Handle Your Rimless Plastic Drum


    For your plastic drum that lacks a top rim, the Bracket Assembly is necessary. Also recommended to securely hold a fiber drum. It provides a brace at top and bottom of your drum to prevent it from slipping in the holder, and adjusts to handle a drum from 31" to 39" (79 to 99 cm) tall.

    Part # 4556-P Bracket Assembly.
    Part # 4556M-P Spark Resistant Bracket Assembly.
    Part # 4556SS-P Stainless Steel Bracket Assembly.

    Diameter Adaptors to Handle

    Diameter Adaptors to Handle Your Smaller Drum

    Diameter Adaptors for 17.5" (44.5 cm) diameter or smaller have brackets at top and bottom of the drum.
    They adjust for a drum up to 38" (96.5 cm) tall.

    Spark resistant and stainless steel Diameter Adaptors are also available.
