Drum Palletizers that Pour
Drum Palletizers that Pour, 55 gallon drum mover, drum mover


Drum movers manually tilt drum to pour at up to 26" high without the safety risks

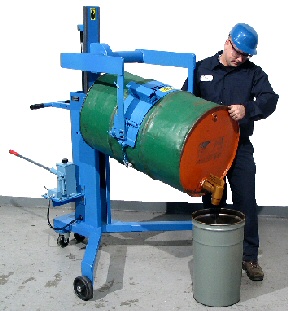

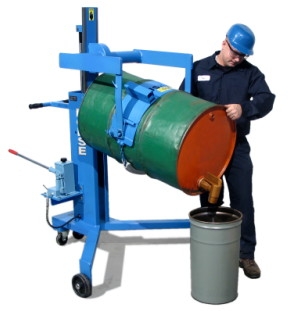

Morse drum movers that pour allow you to move drums on and off pallets and drum dollies, as well as manually tilt the drum to pour at up to 26" high without the safety risks of manhandling heavy drums. Your drum can be rotated 360 degrees end-over-end.The V-shaped base is designed so you can raise and place a drum at the corners of a pallet. Manually tilt drum to pour at up to 26" (66 cm) high without the safety risks of manhandling heavy drums.

Order online or call (877) 742-5190 for a custom quote.
Morse Drum Palletizers allow you to move drums on and off shipping pallets, spill containment pallets or a 55 gallon drum dolly.

Item# Item Name   Qty Add
81 DRUM SPOTTER / PALLETIZER, PALLETIZE 55-GALLON RIMMED DRUM, 800 Lb. CAPACITY
$798.00
82A-120 MOBILE-KARRIER/PALLETIZER, 55-GALLON DRUM, AC 1-PHASE POWER LIFT, MANUAL TILT, 800 Lb. CAPACITY
$2,848.00
82A-124 MOBILE-KARRIER/PALLETIZER, 55-GALLON DRUM, AIR POWER LIFT, MANUAL TILT, 800 Lb. CAPACITY
$2,848.00
82A MOBILE-KARRIER/PALLETIZER, 55-GALLON DRUM, MANUAL LIFT & TILT, 800 Lb. CAPACITY
$2,002.50
82A-125 MOBILE-KARRIER/PALLETIZER, 55-GALLON, 12V DC POWER LIFT, MANUAL TILT, CAPACITY: 800 Lb. (INCLUDES BATTERY & CHARGER)
$2,848.00
Check the items you wish to purchase, then click


More Information:

Request a Quote

Ask a Question

Drum Palletizers That Pour

Drum Palletizers
Morse Drum Palletizers give you the ability to move drums on and off shipping pallets, spill containment pallets, and drum dolllies. The V-shaped base is constructed so you can raise and place a drum at the corners of a pallet. Manually tilt drum to pour at up to 26" high eliminating the safety risks of mistreating heavy drums. Your drum can be rotated 360 degrees end-over-end. To dispense lock drum at horizontal, or to prevent spills while transporting lock drum upright.
55 gallon drum movers are available with ergonomic power lift to raise your drum with AC, DC or Air power-lift.

Drum palletizers handle standard 22.5" diameter 55-gallon steel drum up to 800 Lb.

Lift upright drum up to 20" above the floor.
  • Maximum dispensing height: 26" with horizontal drum
  • Drum in horizontal position reaches 18.5" beyond the wheels of the V-shaped base
Options to handle other drums
Model 82A drum palletizer

Options to handle other drums:

  • Top Rim Clamp Option (part # 4560-P) for your 55-Gallon Rimmed Plastic or Fiber Drum.
  • Bracket Assembly Option (part # 4556-P) for Rimless Plastic Drum, and recommended to more securely handle Fiber Drum.
  • Diameter Adaptors for various smaller drums.

Base dimensions of drum palletizers:

  • 48.5" wide, 39" long
  • Overall length: 42.5"
  • Legs are 9" high and reach 20.75" in front of upright stanchion
  • Standard 55-gallon steel drum in horizontal position reaches 18.5" beyond the wheels of the V-shaped base
  • Turning radius: 53"
  • (2) 4" swivel casters at back
  • (2) 6" wheels at front
  • Counterweighted for stability
Top Rim Clamp Option for handling
Model 82A with Top Rim Clamp Option for handling your rimmed 55-gallon plastic drum
 Convert 82A to 82H Drum Palletizer
Convert 82A to 82H Drum Palletizer by installing Kit # 4724-P
Bracket Assembly Option
Model 82A with Bracket Assembly Option required for handling a rimless 55-gallon plastic drum, and recommended to securely hold a fiber drum
