Stainless Steel Hydra Lift Karrier Models
Stainless Steel Hydra Lift Karrier Models


Stainless Steel Drum Lift to move and pour drums.

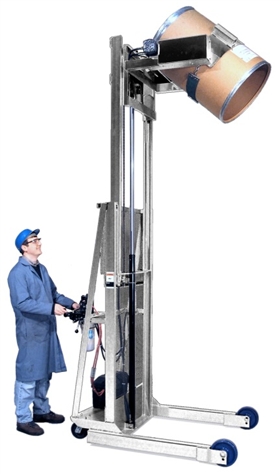

High quality stainless steel drum handlers for use in the clean environments, such as food and pharmaceutical companies Model 400A-96SS-125 shown has 8 foot (2.44 m) maximum pour height, battery power lift and pull chain tilt control. Morse Hydra-Lift Drum Karriers combine incredible strength with simple drum handling by one person.

  • Lift, move, turn, raise and drain your heavy 55-gallon (210 liter) drum
  • Full Drum Capacity Capacity 800 Lb. (363 kg)
  • Hydraulic drum dumpers with 72" or 96" (182 or 244 cm) maximum drum dumping height
  • Handle drum with drum faucet or drum cone in place
  • Maximum of 40" (102 cm) tall drum can be rotated.
Order online or call (877) 742-5190 for a custom quote.

Learn more about all our Stainless Steel Drum Handling Equipment: Drum Diameter Adaptors, Stainless Steel Below Hook Karriers, Stainless Steel Can Tipper, Stainless Steel Drum Dolly, Stainless Steel Drum Lifter, Stainless Steel Drum Truck, Stainless Steel Forklift Drum Karrier, Stainless Steel Hydra-Lift Drum Lifter, Stainless Steel Drum Pourer, Stainless Steel Vertical Drum Lifter
Drum dumpers on wheels to lift, rotate and pour drum.

Item# Item Name   Qty Add
400A-60 Hydra Lift Karrier HYDRA-LIFT KARRIER, 60", MANUAL LIFT & TILT
$1,602.00
400AM-60 Hydra Lift Karrier HYDRA-LIFT KARRIER, 60", SPARK RESISTANT PARTS, MANUAL LIFT & TILT
$0.00
400A-72 Hydra Lift Karrier HYDRA-LIFT KARRIER, 72", MANUAL LIFT & TILT
$1,677.65
400AM-72 Hydra Lift Karrier HYDRA-LIFT KARRIER, 72", SPARK RESISTANT PARTS, MANUAL LIFT & TILT
$0.00
400A-96 Hydra Lift Karrier HYDRA-LIFT KARRIER, 96", MANUAL LIFT & TILT
$1,833.40
400AM-96 Hydra Lift Karrier HYDRA-LIFT KARRIER, 96", SPARK RESISTANT PARTS, MANUAL LIFT & TILT
$0.00
Check the items you wish to purchase, then click


More Information:

Models with zero (i.e., $0.00) pricing need to be priced at time of inquiry. Please call (877) 742-5190 to request a quote.

Request a Quote

Ask a Question

Hydra-Lift Drum Karriers

 Hydra-Lift Drum Karriers

Safe drum handling requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage.

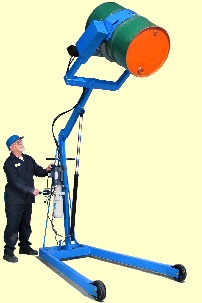

Model 400A-96-110 shown has 8 foot maximum pour height and AC power lift and tilt.

Hydra-Lift Drum Karriers combine incredible strength with simple drum handling by one person.

  • Lift, move, tilt, raise and drain your heavy 55-gallon steel drum
  • Capacity
    • 800 Lb. (363 kg) Full drum
    • 500 Lb. (227 kg) Half Full drum*
  • Handle drum with drum faucet in place
  • Available with 60", 72" or 96" maximum pour height
  • Other models and features are available
  • Hydra-Lift Karriers with Spark Resistant Parts
  • Custom stainless steel drum handlers are available
  • A custom hydraulic drum dumper can be made for your requirements, such as special lift height, extended reach, off-size containers, special straddle width, etc.

It's a Cinch to handle almost any drum, with the
MORcinch Drum Holder

  • Automatically cinches for 22" to 23.5" (56 to 59.7 cm) diameter steel or fiber drum
  • Accepts MORcinch Options to handle your plastic drum
  • Accepts Diameter Adaptors for your smaller drums
  • Flexible chain cover helps protect the drum sidewall
  • Includes safety covered gears for your protection
  • Has durable stress-relief weld joints for years of service

Hydra-Lift Karriers will NOT rack a drum. For drum racking, please see

 Hydra-Lift Karrier with Top Rim Clamp
Hydra-Lift Karrier with
Top Rim Clamp Option
for your rimmed 55-gallon drum.
 Hydra-Lift Karrier with Bracket Assembly
Hydra-Lift Karrier with
Bracket Assembly Option
needed for rimless plastic drum.
Recommended also when
handling a fiber drum.
 Hydra-Lift Karrier with Diameter Adaptor
Hydra-Lift Karrier with
Diameter Adaptor
for handling a smaller drum.

Hydra-Lift Drum Karriers Options


 Hydra-Lift Drum Karriers Options

Top Rim Clamp to Handle Your Rimmed 55-Gallon Plastic Drum

The Top Rim Clamp grips the upper rim of your 55-gallon (208 liter) rimmed plastic drum to prevent it from slipping through the drum holder. The Top Rim Clamp can also be used with a 55-gallon rimmed fiber or steel drum. It bolts onto the MORcinch TM Drum Holder. Clamp it to the top rim of your drum, then secure the cinch chain around the drum as usual.

Part # 4560-P Rim Clamp Assembly.
Part # 4560M-P Spark Resistant Rim Clamp Assembly.
Part # 4560SS-P Stainless Steel Rim Clamp Assembly.

 Rimless Plastic Drum

Bracket Assembly Required to Handle Your Rimless Plastic Drum

For your plastic drum that lacks a top rim, the Bracket Assembly is necessary. Also recommended to hold a fiber drum more securely. It provides a brace at top and bottom of your drum to prevent it from slipping in the holder, and adjusts to handle a drum from 31" to 39" (79 to 99 cm) tall.

Part # 4556-P Bracket Assembly.
Part # 4556M-P Spark Resistant Bracket Assembly.
Part # 4556SS-P Stainless Steel Bracket Assembly.

 Diameter Adaptors to Handle

Diameter Adaptors to Handle Your Smaller Drum

For a smaller diameter drum, Diameter Adaptors fit inside the drum holder. They install easily without tools and are quickly removed.

Diameter Adaptors for 17.5" (44.5 cm) diameter or smaller have brackets at top and bottom of the drum.
They adjust for a drum up to 38" (96.5 cm) tall.

Spark resistant and stainless steel Diameter Adaptors are also available.


Half-full rating of this hydraulic drum dumper is an indication of capacity for tilting unbalanced, bottom-heavy drum. Partially full drum with unbalanced and shifting load is harder to tilt than a full drum.
