Stainless Steel Below Hook Karriers Model 185A-HDSS
Stainless Steel Below Hook Karriers Model 185A-HDSS


Stainless Steel Below Hook Drum Karriers to move and position drums

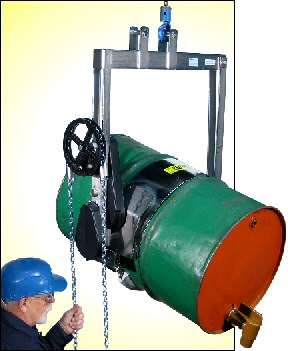

Morse Model 185A-HDSS stainless steel heavy-duty below-hook drum carrier allows you to lift, move and pour a drum weighing up to 1500 Lb., or a half-full* drum up to 800 Lb.

This below-hook drum lifter complies with ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices.

Order online or call (877) 742-5190 for a custom quote.

Learn more about all of our Stainless Steel Drum Handling Equipment: Drum Diameter Adaptors, Stainless Steel Below Hook Karriers, Stainless Steel Can Tipper, Stainless Steel Drum Dolly, Stainless Steel Drum Lifter, Stainless Steel Drum Truck, Stainless Steel Forklift Drum Karrier, Stainless Steel Hydra-Lift Drum Lifter, Stainless Steel Drum Pourer, Stainless Steel Vertical Drum Lifter
Heavy-Duty Below-Hook Drum Carrier Model 185A-HDSS Heavy-Duty Kontrol-Karrier made of Type 304 Stainless Steel

Item# Item Name   Qty Add
185A-HDSS Below Hook Karrier KONTROL-KARRIER, TYPE 304 STAINLESS STEEL, 55-GALLON, 1500 Lb. CAPACITY
$2,198.30
Check the items you wish to purchase, then click


More Information:

Request a Quote

Ask a Question

Stainless Steel Below-Hook Karriers

 Stainless Steel Below-Hook Karriers

Morse Model 185A-HDSS stainless steel heavy-duty below-hook drum carrier allows you to lift, move and pour a drum weighing up to 1500 Lb., or a half-full* drum up to 800 Lb. Model 185A-HDSS heavy-duty below-hook drum carrier is equipped with the MORcinch Drum Holder to handle a 55-gallon steel drum with 22" to 23.5" outside diameter between the ribs. It also accepts MORcinch Options to handle basically any drum on the market.

This below-hook drum lifter adheres to the ANSI/ASME B30.20 standard for mechanical, below-the-hook lifting devices as it applies to the following:

  • Rated load markings and unit identification
  • Minimum design safety factor of 3, based on yield strength, for load bearing structural components
  • Welding is performed by certified welders who have passed the ANSI/AWS D1.1 welding qualification test





Product Documents:




Share your knowledge of this product with other customers... Be the first to write a review
